Quantum Computing #5: Quantum Teleportation

Previously:
Introduction
Single Qubit Gates
Multiple Qubit Gates

Measurement & Review
Superdense Coding
Beam Me Over

If you took the time to digest the previous article on the Superdense Coding protocol, you'll find comparatively few surprises in this one. Remember how two entangled qubits were initially prepared in a special Bell State; then one was sent directly to Bob, while Alice processed the second to encode two classical bits of data. Later, Bob successfully decoded those two classical bits. Didn't it seem to you as if Alice somehow reached across the divide, fiddling with the independent states of both qubits, using some kind of spooky action at a distance?

The Quantum Teleportation protocol is a very similar trick. In fact, you could say that it's exactly the same trick, but performed in reverse. This time, using the magic of the entangled qubit pair, and precisely the same set of quantum gates as before, Alice will teleport to Bob the full state vector of an arbitrary third qubit - using only two classical bits of information.

There are three preliminary, new, key concepts - all related to the notion of measurement - that we'll need in order to investigate and explain the Quantum Teleportation phenomenon today. The first of these is:

The Measurement Basis

Specifically, the performance of a measurement in an arbitrary basis. Recall that in part one we said the labels 0 and 1 might represent unit steps in some arbitrary x- and y-directions. When later we made a measurement in the computational basis, we were in effect holding up a filter, constraining the result to be either 0 or 1 in this sense. But we are free to change this basis!

To take a brief physical detour, suppose our qubit is a photon, and measurement involves holding up a pair of polarized sunglasses, either horizontally or vertically, to see whether or not the photon gets through the lens. We know there's a 50-50 chance it that will, simply because holding up two such identical and overlapping lenses, one horizontally and one vertically, will prevent any photons from getting through. But what's to prevent us holding our sunglasses at ±45° to the horizontal?

Nothing. All we're doing is changing the basis of measurement, from the original computational basis, i.e. horizontal 0 or vertical 1, to this new one, where perhaps 0' and 1' mean pointing respectively up or down at 45°. From the diagram we see these new basis vectors can be expressed readily in terms of the originals, like this:
0' = (0+1)/√2,
1' = (0-1)/√2.
But this is precisely the state transformation performed by the Hadamard gate. Now we can see that it corresponds to a particular reflection, in a line at 22½° to our basis 0 vector (the light grey line in the diagram is this axis of symmetry). Incidentally this illustrates nicely why the Hadamard gate, like any reflection, is its own inverse; since we also have these perfectly symmetrical equations,
0 = (0'+1')/√2,
1 = (0'-1')/√2.
And just as 0' and 1' give us an alternative orthonormal basis for measuring single-qubit states previously expressed in terms of our original computational basis 0 and 1, so too are there any number of alternative bases for a given multi-qubit measurement. One important example in 2-qubit systems is:

The Bell Basis


This is today's new concept number two. Starting from any given 2-qubit computational basis 00, 01, 10 and 11, the Bell basis can be defined as
B0 = (00+11)/√2,
B1 = (10+01)/√2,
B2 = (00-11)/√2,
B3 = (10-01)/√2.
Notice that these four are exactly the states that Alice prepared last time, in the Superdense Coding protocol, by inserting either an X or a Z gate (or both, or neither) into the path of the top qubit of a pair - an entangled pair, which happened to have been prepared in a certain special initial state. We now recognise that state as B0 = (00+11)/√2.

Exactly as before, it's easy to check by substitution that we can express the Bell state mapping the other way round, for convenience in our subsequent conversions:
00 = (B0+B2)/√2,
01 = (B1-B3)/√2,
10 = (B1+B3)/√2,
11 = (B0-B2)/√2.
Partial Measurements

Our third and final new concept of the day is that of a partial measurement. What happens to a composite, multi-qubit state when we perform measurements upon some, but not all, of its constituent qubits? Answer: measured qubits collapse into appropriate basis states in accordance with the probabilities in effect, while unmeasured ones continue in renormalized superpositions.

Take for example the 2-qubit state (a, b, c, d) = a00 + b01 + c10 + d11, and suppose that we perform a measurement, in the computational basis, on its first qubit. Then the probability of getting a result of 0 is simply the sum of the probabilities of getting either 00 or 01 from a full, 2-qubit measurement. Similarly, the probability of a 1 is just the sum for 10 and 11:
prob(0?) = prob(00) + prob(01) = |a|² + |b|²,
prob(1?) = prob(10) + prob(11) = |c|² + |d|².
Okay, that tells us everything we can ever know about the first qubit. What can we say about the posterior state of the second qubit, i.e., its state after this partial measurement? We can answer this by rewriting the original state, collecting terms involving a result of 0 or 1 for the first qubit measurement:
(a, b, c, d) = a00 + b01 + c10 + d11 = 0 (a0 + b1) + 1 (c0 + d1).
This lets us read off the result. If the measurement yielded 0 for the first qubit, then the second qubit is now in the state indicated by a0 + b1, which of course we must renormalize as usual:
(a0 + b1) / √(|a|² + |b|²).
Similarly, a measurement of 1 for the first qubit implies that the second is now in this state:
(c0 + d1) / √(|c|² + |d|²).
Quantum Teleportation

Now we finally have enough background to understand the Quantum Teleportation protocol, which is illustrated in the diagram below. Alice starts with an arbitrary qubit state which I've called ψ, pronounced sigh, out of deference to 86 years of quantum mechanics... sorry about that!

So Alice starts with ψ = (a, b) = a0 + b1, where |a|² + |b|² = 1. This is the state she wants to communicate to Bob; and she also has access to one qubit of an entangled pair, previously prepared in the state
B0 = (00+11)/√2.
She now performs the "decoding" second half of the Superdense Coding protocol on her two qubits. So that's a cNOT, followed by a Hadamard on the first qubit, then a 2-qubit measurement. Remember, this was the operation performed by Bob last time, and it yields a couple of classical bit results. We've shown these as thick double wires, intended to give the impression of big, strong, macroscopic classical logic levels, insusceptible to decoherence. This decoding operation is actually termed a measurement in the Bell basis. Furthermore, in this setup it's a partial measurement. Recall that we are dealing with a system of three entangled qubits, but measuring only two of them. The third, the bottom one in the diagram, is simply transmitted directly to Bob.


Now Bob examines those two classical bits of data he's received from Alice, and uses them to decide which, if any, of his decoding X and Z gates to apply. His logic is exactly the reverse of the "encoding" step used in the first half of the Superdense Coding protocol. And that's all there is to the Quantum Teleportation protocol; the output that Bob ultimately obtains is identical to Alice's initial, arbitrary state ψ.

I Don't Believe You

And who can blame you! Okay, but be warned: I'll be renormalizing throughout today, so as to avoid any sleight-of-hand accusations. So let's start with the initial state of the 3-qubit system,
(a0 + b1)(00 + 11) / √2 = [a (000 + 011) + b (100 + 111)] / √2.
Alice begins by passing the first two qubits through a cNOT gate. This flips the state of the second qubit in the last two terms, i.e., those where the first "control" qubit is 1, resulting in the state
[a (000 + 011) + b (110 + 101)] / √2.
Next she passes the first qubit through a Hadamard. The effect of this is to replace every initial 0 with (0+1)/√2, and every initial 1 with (0-1)/√2. Collecting terms and combining the √2 divisors, we now have the state
[a (000 + 011 + 100 + 111) + b (001 + 010 - 101 - 110)] / 2.
This is the point at which Alice performs the partial measurement upon the first two qubits. The probability of her getting a result of 00 is
prob(00?) = prob(000) + prob(001) = (|a|² + |b|²) / 4 = ¼,
since |a|² + |b|² = 1. And in fact if you work out the remaining probabilities for results 01, 10 and 11, they all turn out to be ¼. Think about that - the measurement outcome is absolutely random, and completely independent of the particular state of the input qubit ψ! This happens because - thanks to the cNOT and H gates - we are performing the measurement in the Bell basis, and not in the original computational basis where we started.

Fascinating as this detail may be, nevertheless it's not quite what we're after here. We want to know the posterior state of the third qubit. This does depend critically upon the particular 2-bit classical result just obtained, so just as in the Superdense Coding protocol, we now have four distinct cases to consider.
________

Case 00: keeping only the 000 and 001 terms from our state expression and renormalizing, we obtain the state received by Bob:
00 (a0 + b1) = 00 ψ.
That's the magic of quantum teleportation! Without doing anything further, Bob knows from the classical measurement 00 that his third qubit is already in Alice's initial state, ψ.
________

Case 01: keeping only the 010 and 011 terms from our state expression, and renormailzing, we obtain the state received by Bob:
01 (a1 + b0).
Notice however that the 1 bit in the classical measurement result activates the X gate in Bob's decoding circuit, causing a logical inversion of the third qubit, and a final state of
01 (a0 + b1) = 01 ψ.
Again, Bob has successfully received Alice's full state ψ in that third qubit.
________

Case 10: keeping only the 100 and 101 terms from our state expression, and renormailzing, we obtain the state received by Bob:
10 (a0 - b1).
Notice however that the 1 bit in the classical measurement result activates the Z gate in Bob's decoding circuit, causing a sign change in the second basis component of the third qubit, and a final state of
10 (a0 + b1) = 10 ψ.
Again, Bob has successfully received Alice's full state ψ in that third qubit.
________

Case 11: keeping only the 110 and 111 terms from our state expression, and renormailzing, we obtain the state received by Bob:
11 (a1 - b0).
This time both bits in the classical measurement result are 1, so this state becomes subjected to both the full logical inversion and the phase (sign) change, and the final 3-qubit state is
11 (a0 + b1) = 11 ψ.
So in all four cases - in other words, regardless of the outcome of the partial measurement operation - Bob has successfully received Alice's full state ψ in the third qubit.
________

Interactive Demo

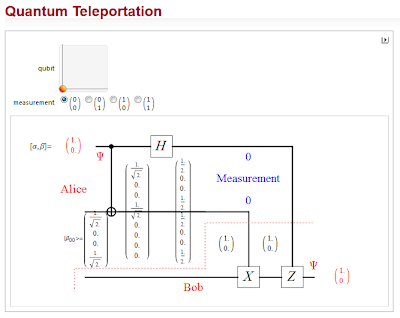

Once again Brad Rubin steps up with the Wolfram Demonstrations Project simulation of the Quantum Teleportation protocol, a model of clarity:


This ingenious demo lets you vary both the arbitrary input state ψ, by dragging the indicator point in the upper graph, and the 2-qubit partial measurement result, using the radio buttons below it. Intermediate states of the 3-qubit system are displayed as continuously updated column vectors.

Picture of Star Trek transporter chamber from Wikipedia.

Sunday, 6 November 2011

Quantum Computing #4: Superdense Coding

Previously:
Introduction
Single Qubit Gates
Multiple Qubit Gates

Measurement & Review
Note: Last week's removal of Greek lettering and matrices has proved too popular to ignore, all feedback being either positive or neutral, so I'll continue using this "new" notation wherever possible.

Breaking News! A single qubit can transmit two full classical bits of information.

Not on its own, though. We can only ever encode one single classical bit of information into a solitary, unentangled qubit. But when we have access to an entangled pair, we can choose to send one unmodified to our intended recipient, and encode a full two classical bits into the other. To see how, we'll have to examine four quite similar quantum circuits. And we'll need the help of a new single-qubit gate we haven't met before:

The Z Gate


Like its partner the X gate, Z is a kind of inverter. It maps the input qubit state (a, b) to (a, -b). We say that it inverts the phase of the second basis vector. For the sake of completeness alone, here is its matrix representation:


Preparing the Bell State

The two qubits that we'll be using to perform the superdense coding trick have to be entangled, so first let's see how to achieve that. One way is to prepare them both initially in the 0 state. Next, we pass the first qubit of the pair through a Hadamard gate. Finally, we use the output of the H gate as the control input of a controlled-NOT gate, conditionally inverting the second qubit:


The H gate converts the first 0 into 0+1, where I'm going to use '+' and '-' to mean "normalized vector sum" and "normalized vector difference", just to get rid of all the visual noise generated in the calculations by incessant divisions by √2. Since the second qubit remains at 0, the combined state after the H gate is 00+10. Nothing strange about this so far; all it says is that a measurement on the first qubit will yield either 0 or 1, each with 50% probability, while a measurement on the second qubit will still yield 0, with 100% certainty.

Next, the qubits arrive at the cNOT gate. This has no effect upon the first part 00 of the superposition, since there the control (first) qubit is 0. However the second part, 10, has a 1 in the control bit position, causing the cNOT gate to invert the second qubit. The combined state at the output of the cNOT gate is therefore 00+11.

This is termed a Bell State, and it's actually a fairly remarkable state when you think about it. It says that the qubit pair is in a perfectly balanced superposition of the 00 and 11 states. Expressed as a sequence of renormalized amplitudes, it is
(a, b, c, d) = (1/√2, 0, 0, 1/√2)
Since |a|² = |d|² = ½, while |b|² = |c|² = 0, this says that a measurement is equally likely (50%) to yield 00 or 11, and to do so absolutely randomly; but it can never yield 01 or 10. Now if you measure just one of the qubits, whatever result you obtain, 0 or 1, you'll get exactly the same outcome when you measure the second qubit. Even if it's hours or years later, miles or light years away.

Encoding and Decoding

Remember that both Hadamard gates and inverters are their own inverses. If we were to make a mirror image of the above diagram and then join the two together, our final output state would be the same as the originally prepared 00, with probability 100%. This mirror image decoder is shown below, if we temporarily ignore the "?" gate (imagine it to be just a quantum wire, or an Identity gate I):


Suppose Alice is in charge of the "?" box, and Bob is performing the final measurements. Alice wants to send 2 classical bits of data to Bob, but she's only allowed to operate upon the first of the two qubits (the top one in the diagram) to do it. What should she put in the "?" box?

Well, if the bits she wants to send are 00, then she need apply nothing but a simple quantum wire, since we've just seen that this will result in Bob's measurements yielding the result 00 with 100% certainty. In the more general case, she needs to examine both of the classical bits that she wants to send. If the first is 1, then she should add our new friend the Z gate in place of the "?". If the second is 1, she adds an X. Note that if both bits are 1, she will now have added both a Z and a following X.
00I
01Z
10X
11Z followed by X
And that's all there is to the Superdense Coding Protocol. With those arrangements in place, Bob's measurements will always yield, with 100% certainty, the particular combined state 00, 01, 10, or 11 that Alice wanted to send him.

I Don't Believe You

No, you'd be mad to, unless you're already a QC expert! We'll go through the four cases individually in detail. Remember, the starting point for Alice is in each case the Bell State 00+11. It will also be useful to remember the reversibility of the H gate. Just as it converts basis states 0 and 1 respectively into their sum 0+1 and difference 0-1, so when presented with a sum 0+1 at its input, does it output 0; and with a difference 0-1, output 1.

Case 00: We already established, using an argument based on considerations of symmetry, the correct operation of the circuit for this first case. Still, it's worth running through the detailed sequence of decoding steps, since these are the same for all subsequent cases. So: Alice does nothing to the 00+11 state, which is then passed immediately into the second cNOT gate. This has no effect on the 00 portion of its input, but changes the 11 part (because the first, control bit is 1) into 10. The cNOT output is therefore 00+10. The first of these qubits, 0+1, is fed to the second Hadamard, which as mentioned above, converts it to 0. Therefore, the final 2-qubit output is 00, with probability 100%.

Case 01: Alice inserts an X gate in the path of the first qubit, converting the initial 00+11 to 10+01. The cNOT changes this to 11+01, feeding the first qubit 1+0 into H, which outputs 0. Therefore, the final 2-qubit output is 01, with probability 100%.

Case 10: Alice inserts a Z gate in the path of the first qubit, converting the initial 00+11 to 00-11. The cNOT changes this to 00-10, feeding the first qubit 0-1 into H, which outputs 1. Therefore, the final 2-qubit output is 10, with probability 100%.

Case 11: Alice inserts both a Z and a following X into the path of the first qubit, converting the initial 00+11 first to 00-11 as in the previous case, then to 10-01. The cNOT changes this to 11-01, feeding the first qubit 1-0 into H, which outputs 1. Therefore, the final 2-qubit output is 11, with probability 100%.

Quantum Erat Demonstrandum!

The second most surprising thing about Superdense Coding - other than the fact that in reality, it works exactly as advertised! - is the time it took to get itself discovered. The whole subject of Quantum Mechanics was kicked off by Werner Heisenberg in 1925, with Quantum Computing eventually appearing with Richard Feynman in 1982; yet it was a further ten years after that before the definitive Bennett & Wiesner paper appeared, noting that certain "EPR" (Einstein-Podolsky-Rosen) states "allow two bits to be encoded reliably in one spin-½ particle..."

Interactive Demo

The Wolfram Demonstrations Project contains a great interactive demo of the Superdense Coding protocol, one of several contributed by Brad Rubin. This varies a little from the our example, specifically in the order of the X and Z gates during the 11 case, but the difference vanishes during final measurement. You interact with it by downloading the Computable Document Format (CDF) Player, and optionally the Superdense Coding demo file itself, which looks like this:


As you can see, it displays all the intermediate states of the qubits during this quantum computation - and fully normalized, hence all the "1/√2"s.

Footnote

In this series I've been avoiding discussion about the physical realisation of qubits, but the day after I posted this comment on digital simulator Logicly's Facebook page...
Has anyone ever asked for a quantum circuit version? You seem to have all the component building and layout logic that would require. Qubit signals: rather than boolean, these would be pairs of complex numbers (or quadruples of floats), and there would be a "measurement" gate with a classical boolean 0 or 1 output. Now seems a good time to start training up on these!
... noted futurologist and SF author Charles Stross predicted room temperature quantum computing on integrated circuitry within 5 to 20 years, based on a fascinating discovery about silicon carbide. My guess is that many more suitable materials will be discovered quite soon, making available QC technologies that will have absolutely no trouble attracting capital investment at the left hand edge of that range.

Next time: Quantum Teleportation.

Saturday, 5 November 2011

My Work in Print: 1985

I've previously written about the very competitive crafting of optimum machine code programs for Personal Computer World magazine's 1980s Sub Set series, here and there. In 1985, the incumbent series editor David Barrow convinced Century Communications to publish two books of the best submissions. According to the descriptions on their publication history pages, these books were "Edited and produced working directly from the author's word-processor by NWL Editorial Services, Rushley, High Ham, Somerset" - a huge novelty in the publishing world at the time. Book geeks: note the cool adjacent ISBNs!

Best of PCW Assembler Routines for the Z80

Although the first IBM PC with its 8-bit Intel 8088 chip had already been available for about four years, still most business software was based on the CP/M operating system, and the more powerful, backward compatible Zilog Z80. Joined to legion Sinclair hobbyists, these users constituted quite an army. Here is the index of my contributions to the Z80 edition:
  • ECAL - Calculate error correction byte; pp. 70-71.
  • EFIX - Validate data with error correction byte; pp. 71-72.
  • NEWPC - Anticipate PC contents after next instruction; pp. 78-82.
  • RDM32 - 32-bit pseudo-random number generator; pp. 147-149.
  • SQR31 - Square root of 32-bit signed (positive) value; pp. 169-170.
  • SQR32 - Square root of 32-bit unsigned (absolute) value; pp. 169-170.
  • CURT16 - Cube Root of a 16-bit unsigned integer value; pp. 170-174.
  • CURT32 - Cube Root of a 32-bit unsigned integer value; pp. 174-176.
  • SDIV4 - 4-byte signed integer division; pp. 183-185.
Barrow, David (editor)
Best of Personal Computer World Assembler Routines for the Z-80
Century Communications Ltd
1985
ISBN 0 7126 0506 1

Best of PCW Assembler Routines for the 6502

While businessmen cycled their Z80s, many hobbyists with an aversion to dead-flesh rubber keyboards were devouring Commodore VIC-20s and 64s, and Acorn's BBC Micro. All of these used the MOS Technology 6502 processor. Here is the index of my contributions to the 6502 edition:
  • RINXY - Register Indirect addressing mode emulator; pp. 20-22.
  • ECAL - Calculate error correction byte; pp. 88-90.
  • EFIX - Validate data with error correction byte; pp. 90-91.
  • SQR15 - Square root of 16-bit signed (positive) value; pp. 125-127.
  • SQR16 - Square root of 16-bit unsigned (absolute) value; pp. 125-127.
  • SQR31 - Square root of 32-bit signed (positive) value; pp. 127-129.
  • SQR32 - Square root of 32-bit unsigned (absolute) value; pp. 127-129.
  • CURT16 - Cube Root of a 16-bit unsigned integer value; pp. 129-134.
  • CURT32 - Cube Root of a 32-bit unsigned integer value; pp. 134-137.
Barrow, David (editor)
Best of Personal Computer World Assembler Routines for the 6502
Century Communications Ltd
1985
ISBN 0 7126 0507 X

A Disassembler in ~1KB


Colleague C keeps reminding me that The SUBSET editor David Barrow was able to trim only one byte from John Kerr's compact code. What the hell is he talking about? The quote comes from this ZX Spectrum Utility, whose author explains: The stated aim was to write a Z80 disassembly routine in as short a space as possible and, at just over 1K (1090 bytes), it is a rather incredible program.

Unfortunately my DISZ80 routine was submitted too late - by about two years - for inclusion in the book, and I no longer have the magazine that it appeared in. At the risk of sounding a bit JR Hartley, if anyone out there has that 1987 issue, it would be good to be able to restore the line comments to the utility. I work in self-documenting, high level languages now, eschewing comments almost universally. But part of the strict Sub Set documentation standard insisted that every single machine code instruction got fully commented. Oh, and it would also be nice to see exactly where Dave Barrow's one-byte optimization appeared!

[Update 30 April 2012: This has now been done, many thanks to my new best friends Geoff Wearmouth and Stephen Parry-Thomas! See comments below, and also My Work in Print: 1987]

Cube Root Algorithm

I derived the method of cube root extraction used in both books, by applying a kind of induction by analogy to the existing square root algorithm. Dave thought my description of the process sufficiently interesting to publish it. Click for readability:



Next time: 1987

Friday, 4 November 2011

I Hate Susan Adele Greenfield

With A Vengeance

I think I've despised her since puberty. Mine, not hers. Which was of course some decades ago, and it certainly feels so long, and the hatred so matured, since first I saw her interviewed on some godforsakenly neurological or psychological subject or another. In an age of great expositors, of scientific enlightenment and the engagement of the public, of TV with James Burke, Jacob Bronowski, Carl Sagan, Patrick Moore, Nigel Calder... it seemed perfectly clear to me, from my viewpoint of almost complete ignorance of the subject, that she was winging it. Faking it. Had absolutely no clue what she was talking about. Was doing nothing more than trot off her own personal preconceptions and prejudices, representing these as scientific fact. Cod philosophy claptrap about consciousness and identity.

Now I am delighted to discover that all this time, almost everyone else with an opinion about her has been quietly in agreement with mine. Quietly, because she seems also to be one ferociously litigious bitch.

Recently sacked - sorry, wishful thinking there - recently made redundant (January 2010) from her job as Director of the Royal Institution, for having driven that esteemed charity into a £3M debt crisis and near bankruptcy with her ineffective £22M renovation of its still unpopular Albemarle Street wine bar, her response was to sue the world's oldest independent research body for supposed "sex discrimination". And win an out-of-court settlement, what's worse. At least the lawyers had the decency to prevent her blabbing about it, otherwise she might have continued badmouthing the Institution's venerated custodians to this day, milking it for publicity - she has just written her first novel, you see. Appropriately enough, given her press profile (see below), it's a work of fiction about the effects of technology on the mind.

In fact, the abolition of the post of Director was the only legal means anyone could find of getting rid of her. So if you grew up as I did, watching faithfully each year's Royal Institution Christmas Lectures, and if you wondered why at the turn of the millennium they took a swerve from their rightful home on BBC Two, wandering aimlessly and destitute through Channel 4, Channel Five, More4 and BBC Four, begging for commercial scraps while their resources and their scale, if not their scope, dwindled; well, now you know precisely whose catastrophic mismanagement was to blame for their woes.

Retractable Roof and Patio

Greenfield sold off the institution's entire £15m Mayfair property portfolio to raise funds. At the same time as the wine bar fiasco, a flat she used was refurbished with a retractable roof and patio. She got her arse kicked out of that: "The flat only came with the post," said an RI representative, "[and] she is no longer in the post, so it would be inappropriate if she used it." To her credit perhaps, she did not even try to defend herself at the time, saying only "Redundancy is supposed to be about the post, not the person. So my personal performance should not be relevant." A resolution proposed by her supporters that would have led to the replacement of the RI's council, paving the way for her return as director, was defeated by an overwhelming margin. On BBC Radio 4's Today programme she squirmed: "I was charge of the organisation and I was the person who had the vision. The financial decisions were collective." Last August she told the London Evening Standard's Sophie Goodchild, her epitaph would be “She knew herself, and had a laugh.”

Yet for me, the worst slight of all is that the bogie herself presented the Institution's 1994 lectures. This was in my view an unspeakable act of scientific and cultural vandalism, to daub her all-cursed name on so pristine a list stretching back to Michael Faraday (pictured), their 1825 initiator. A list containing too my contemporary heroes of science and technology: Desmond Morris, Bernard Lovell, Eric Laithwaite, Richard L Gregory, George Porter, John Napier, David Attenborough, Heinz Wolff, Carl Sagan, Lewis Wolpert, Richard Dawkins and Ian Stewart, to name only some of the presenters I've personally enjoyed over the years.

The Greenfield and her demented slobbering have naturally had a well documented exposure in the gullible press. She has been responsible for a rash of scare stories spouting baseless drivel about the dangers of the Internet and video games, like the Daily Mail's Social websites harm children's brains: chilling warning to parents from top neuroscientist or Computer games leave children with 'dementia' warns top neurologist, or the Telegraph's Baroness Susan Greenfield: society should wake up to harmful effects of internet or Computers could be fuelling obesity crisis, says Baroness Susan Greenfield. Serious claims, backed up by absolutely no published research.

Hypocrisy and Fraud

Why then does she promote these "harmful" games for her own personal financial gain? That reeks not merely of a Carol Vorderman-like level of hypocrisy, but of fraud. For example, out of three studies that she claims prove the £88 game MindFit improves mental abilities, two had "basic design flaws" (no control group, the most fundamental scientific defect of all), while the third failed to show the game was any more effective a mental stimulation than playing Tetris. Maybe she's not actually a scientist at all. Writing in The Guardian, Doctor Ben Goldacre has wondered why she has never formally written up and published her claims of imagined technological harm, with evidence to back them, rather than continuing to use the media as a platform for her pet hypotheses on technology's evils:
Baroness Greenfield has a theory that computers – which are extremely widespread – pose a serious environmental hazard to children. She therefore has a clear duty to her peers, and more importantly to the public, to present this theory clearly and formally in an academic journal, with the evidence, so that her scientific peers can assess the threat.
Greenfield's response was to liken Goldacre to certain epidemiologists who denied that smoking causes cancer. "That seems to me to be simply offensive, and unhelpful", he comments. Sounds to me more like the raving of some mad third world dictator, than the output you'd expect from our most eminent female scientist. But I think Ben, who has had her in his telescopic sights for some time, dealt her a killer blow today, when on his primary blog Bad Science he asked again, this time getting both slashdotted and echoed on Boing Boing:
Why, in over 5 years of appearing in the media raising these grave worries, has Professor Greenfield of Oxford University never simply published the claims in an academic paper?
Which reminds me, Ben's on QI tonight, so I'll have to curtail my torrential diatribe at this point. Baroness Greenfield: in my humble opinion, you are a disgrace to your profession, to science, to neuroscience and pharmacology, to writing, and to broadcasting; an embarrassment to the peerage; an ugly carbuncle upon the arse of the British Empire; and a poisonous force for evil, ignorance, and prejudice in our world. Either STFU, or DIAF.

Pictures of Greenfield and Faraday courtesy of Wikipedia.

Tuesday, 1 November 2011

Algebra of Functions, Part 4: Parsers

A Series of Tubes

Note: this 2010 series of articles (part one, two, three, ) was abandoned incomplete when overtaken by events at the Microsoft C# compiler factory. My utimate target, actually intended to be the article right after this one, was the Continuation Monad; but Eric Lippert got there before me with a surprise sprint (Continuation Passing Style Revisited, part one, two, three, four, five) leading up to his introduction to async/await marathon (Asynchrony in C# 5, part one, two, three, four, five, six, seven, eight). The only reason to publish this short excerpt now is to have a convenient index into the work of Brian McNamara and Luke Hoban, as linked at the end.

Today we take a look at another popular exhibit from the monad menagerie: the Parse monad.

Parsing is such a popular example of the application of monads, because it so neatly fits the characteristic template of a data processing pipeline with side effects. When parsing a string into any given language, each successive step
  1. consumes part of the input string, and then
  2. passes the remainder on to the next step in the sequence.
That constitutes the main process. But as a side effect, the just-parsed value is also made available in some way. This might be a keyword of the language, the name of a variable, or perhaps a binary value representing a data value of some particular type; but it could equally well be discardable whitespace, or any character, etc.

In terms of our monad then, the unamplified type is the input type string. The amplified type, which must be capable of holding all of the output from an operation of parsing, needs to store both a string, representing the remainder of the unconsumed input, and another, parsed value, of some arbitrary type.

Language geeks love all monads and parser combinators in equal measure, and there is a wealth of information about all this stuff on the web. As for C#, one of the best and most detailed I've seen is Brian McNamara's December 2007 series, "Monadic Parser Combinators", which gets as far as Part Eight before surrendering to F#:

Part: One, Two, Three, Four, Five, Six, Seven, Eight.
Source: Part 4, Part 5/6.

Very succinct and readable is Luke Hoban's contribution, also from 2007:

Monadic Parser Combinators using C# 3.0
